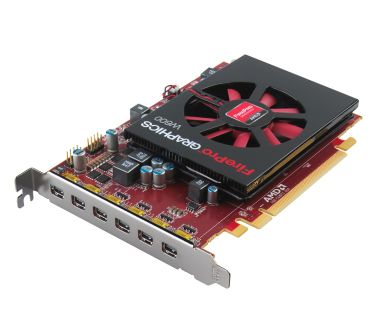

FirePro W600 Video Card

$525.00

6 Displays | DisplayPort, HDMI or DVI | 2G DDR5 | 4K | 3D:  A 6 output video card designed for financial, video walls, display walls, control room and corporate environments.


Display Capabilities

  • 6 x DisplayPort, DVI or HDMI (with optional adapters).
  • Ports on the video card are Mini DisplayPort
  • Max DisplayPort 1.2a Resolution: 4096 x 2160
  • Max DisplayPort 1.1 Resolution: 2560 x 1600
  • Max DVI (with DP to DVI adapters): 1920 x 1200
  • To obtain the max resolutions above, monitors must also support that resolution.
  • Up to 6 x (non 4K) HDMI outputs with optional active adapters above.
  • Native support for 6 x 4k outputs when DisplayPort v1.2 or higher displays are used.


Specifications

  • PCI Express x16 lane architecture
  • Support for up to 6 video outputs: DisplayPort , DVI or HDMI (with optional adapters)
  • 2G DDR5 graphics memory
  • Low power consumption
  • DirectX 11 and Open GL 4.2 support
  • High performance 3D graphics engine
  • Catalyst Control Center software
  • Eyefinity support

System Requirements

  • Available PCIe x16 slot
  • Microsoft Windows 7, Windows 8, Windows 8.1, Windows 10 or Linux (32-bit or 64-bit)
  • 4G of system memory
  • 500w power supply
  • CD-ROM drive (or Internet access) for software installation

Monitor Requirements (What you will need)

Monitors should all be the same make and model for best results. At the very least, monitors must be paired with the exact same make, model and resolution on ports 1/2 and on ports 3/4.  However they can be different monitors on each pair.

For example, you can have two of the exact same Samsung monitors on ports 1&2 and have two of the exact same Viewsonic's on port 3&4 etc. The key is that they are paired together with the same make and model. If you have ALL the same exact monitors you have nothing to worry about.


  • DVI Monitors: 6 x MDP to DVI active adapters (required for DVI) + 6 x DVI cables. You can use the DVI cables that came with your monitors, or add them to your order above.
  • DisplayPort Monitors: 6 x MDP to DP cables. Add to your order above if needed.
  • HDMI Monitors (non - 4k): 6 x MDP to HDMI active adapters + 6 x HDMI cables. You can use your own HDMI cables, or add them to your order above.

If you have any questions, please feel free to give us a call now at 239.254.9206.


Warranty

  • Three year limited product repair/replacement warranty direct from AMD
