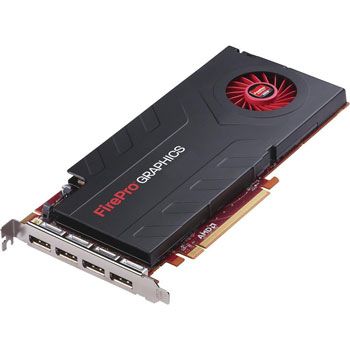

FirePro W7100 Video Card

$725.00

4 Displays | DisplayPort, DVI or HDMI | 8G DDR5 | 4K | 3D: A very robust professional grade graphics card for 2D/3D applications. Certified for many CAD/CAE applications this very powerful video card will get the job done.


Display Capabilities

  • 4 x DisplayPort , DVI or HDMI (with optional adapters)
  • Max DisplayPort 1.2a Resolution: 4096 x 2160
  • Max DisplayPort 1.1 Resolution: 2560 x 1600
  • To obtain the max resolutions above, monitors must also support that resolution.
  • 2 x DP to DVI adapters (passive) are included to connect 2 x DVI monitors + 2 x DP monitors.
  • Up to 4 x DVI monitors (with 4 x active adapters above).
  • Up to 4 x 4k HDMI outputs @30Hz with optional active adapters above.
  • Up to 3 x 4k HDMI outputs @60Hz with optional active adapters above.
  • Native support for 4 x 4k outputs when DisplayPort v1.2 or higher displays are used.
  • No VGA support for this card.


Specifications

  • PCI Express x16 lane architecture
  • 8G DDR5 graphics memory
  • Low power consumption
  • DirectX 11.2/12 and Open GL 4.4, OpenCL 2.0 support
  • High performance 3D graphics engine
  • Catalyst Control Center software
  • Eyefinity support

System Requirements

  • Available PCIe x16 slot
  • Microsoft Windows 7, Windows 8, Windows 8.1, Windows 10 or Linux (Any in 32-bit or 64-bit)
  • 8G of system memory
  • 500w power supply
  • CD-ROM drive (or Internet access) for software installation


Monitor Requirements (What you will need)

  • DVI Monitors: 4 x DP to DVI active adapters (required) + 4 x DVI cables. You can use the DVI cables that came with your monitors, or add them to your order above.
  • DisplayPort Monitors: DP to DP cables. Add to your order above if needed.
  • HDMI Monitors: DP to HDMI active adapters (required) + 4 x HDMI cables. You can use your own HDMI cables, or add them to your order above.

If you have any questions, please feel free to give us a call now at 239.254.9206.

Warranty

  • Three year limited product repair/replacement warranty direct from AMD
