FMB-5x1

$1,499.00

Wall Mount Signage for 5 Screens

Wall mount / menu board for 5 large screen TVs up to 55" in a 5 x 1 configuration. Menu Board Wall Mounts offer perfect display positioning and flexible adjustments. The single horizontal extrusion with depth adjustment aligns the screens quickly even on irregular mounting surfaces and allows easy access behind the displays for servicing.

Ideal for: Restaurants, video surveillance, transportation, display walls, control rooms, municipal and more.


Specifications

  • Universal VESA interface: 100mm - 400mm
  • Number of monitors or TV's supported: 5
  • Orientation: Landscape
  • Typical screen size: 32" - 55"
  • Weight capacity per display: 125 lbs
  • Color: Black

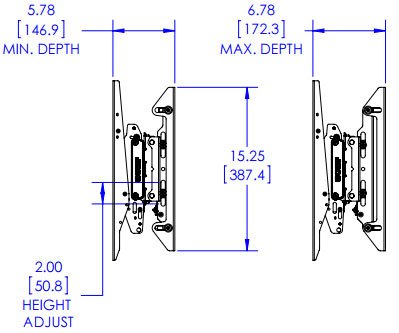

  • Depth adjustment: 0" - 1"

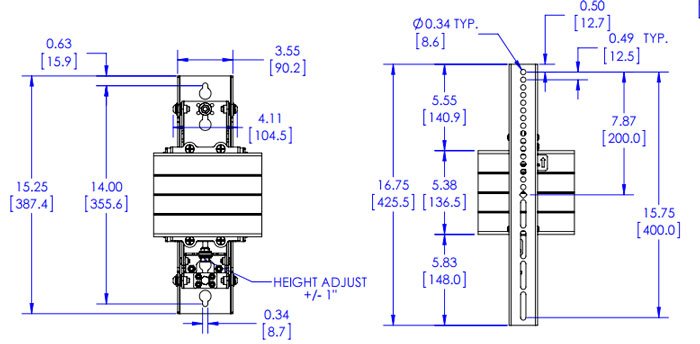

  • Height adjustment: 2" (or +/- 1")
  • Minimum depth: 5.8"

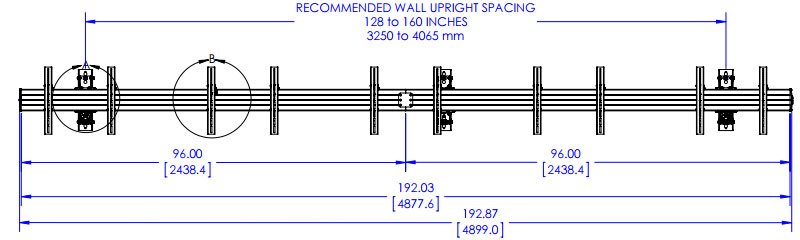

  • Overall dimensions: 16.75" x 196.8" x 5.8"
  • Horizontal bar: 1" thick x 5.38" high
  • Weight: 114 lbs
