K3310G

$399.00

The K3310G is a high quality monitor stand for mounting 3 displays in a 3 wide by 1 high configuration. This sturdy monitor mount creates a very efficient and productive multiple monitor environment.

This stand features vertical and horizontal adjustability as well as 12 degree individual angle adjustments for each LCD. Support for up to 3 x 27" or up to 2 x 30" displays with the unique telescoping arms with a solid bolt down style base. One of the unique features of this mount is the telescoping arms providing a wide range of mounting options from 17" up to 30" displays.


Specifications

Color: Black
Mounting Method: Bolt down Base
VESA Compatibility: 75 x 75mm, 100 x 100mm
Number of Monitors: Up To 3 x to 27" OR 2 x 30" Displays
Orientation: Landscape & Portrait
Screen Array Configuration: 3 x 1 or 2 x 1
Shipping Weight: 26 lbs

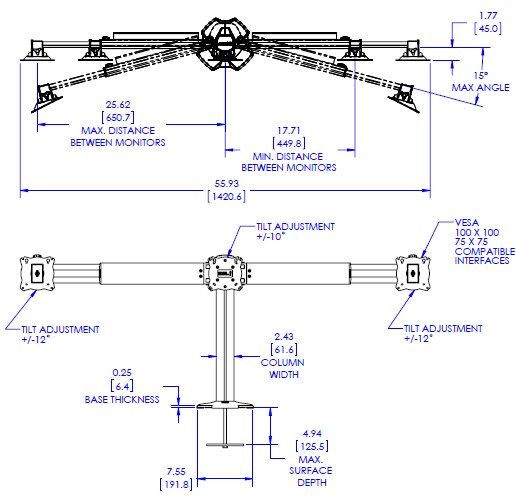

Individual VESA Head Tilt: +/- 12 degrees. Center head 10 degrees.
TV Width Range: 2x1: 51.2" max width; 3x1: 25.6" max width
Typical Screen Sizes: 3x1: Up to 27" ; 2x1: Up to 30"
Weight Capacity: 15 lb per monitor

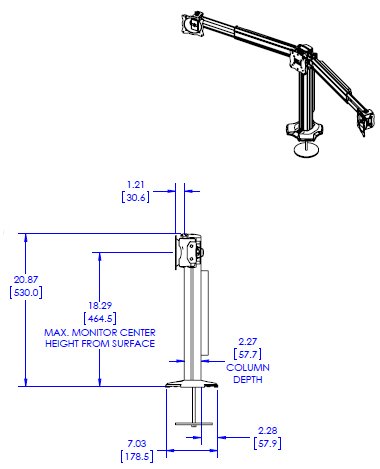

Overall Dimensions:21" (h) x 40" (w) x 7" (d)
Warranty:10 Years.


Installation

  • Drill 1 x 3/8" hole to mount the bolt down style base, the vertical pole then bolts to the base.
  • Product comes mostly pre-assembled, so installation is fast & easy.
  • Teardrop hole pattern simplifies monitor mounting.
  • VESA 75 x 75 mm and 100 x 100 mm compatible.
  • Tool-free, integrated cable management.
  • Monitor mounting and bolt down base hardware is included


Technical
