 Swing Arm Monitor / TV Wall Mount

Sleek and solidly constructed, the K1120D monitor TV wall mount is a very flexible mount for a single display. For use with a desktop or laptop, the Dynamic Height-Adjustable upper swing arm makes this mount the perfect choice for the office, health care facilities or home.

If your back hurts from sitting in a chair all day, consider creating an ergonomic stand-up style desk layout for a healthier working environment. With 13" inches of total height adjustment, easily raise from a seated position to standing throughout the day.

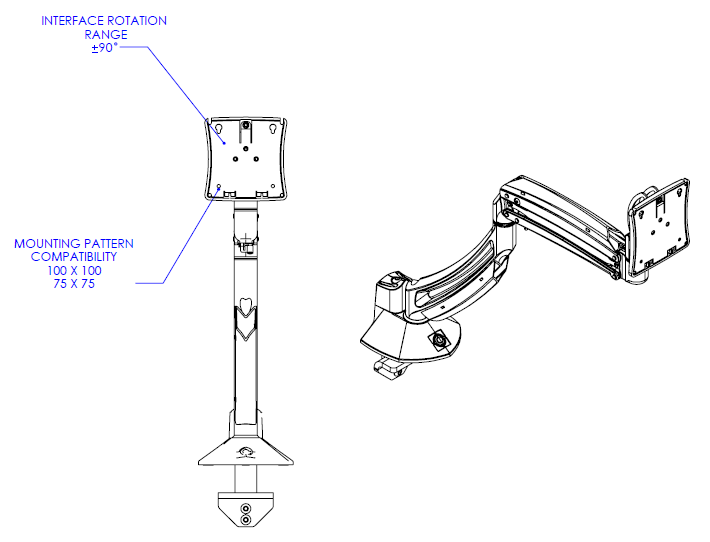

The upper section of the swing arm allows for 13" of dynamic height adjustability. Max height desktop surface to center of monitor is 23.2". See technical tab for more detail.

The unique free-floating design swing arm allows for "weight assisted" movement of your monitor with the touch of a finger. Increase the tension for heavier monitors, loosen the tension for lighter monitors and gravity will do the rest. For use in a seated or standing environment, make your working environment more comfortable and efficient.


Color: Black
Mounting Method: Clampdesk OR Bolt to desk with included kit
VESA Compatibility: 75 x 75mm, 100 x 100mm
Number of Monitors Supported: Up To 1 x 30" Display
Orientation: Landscape & Portrait
Use for Stand Up Desk: Yes
Screen Array Configuration: 1 x 1
Shipping Weight: 12 lbs
Individual VESA Head Tilt: Tilt up 75 degrees, tilt down 10 degrees
Max Height Adjustment: 20.6"
Max Height Desk to Center of Mon: 23.2"
Min Depth: 2.45"
Weight Capacity: 5-25
Desktop Thickness Range: 0.5" - 2.5"
Warranty: 10 Years.


  • Product comes mostly pre-assembled, so installation is fast & easy.
  • Teardrop hole pattern simplifies monitor mounting.
  • VESA 75 x 75 mm and 100 x 100 mm compatible.
  • Tool-free, integrated cable management.
