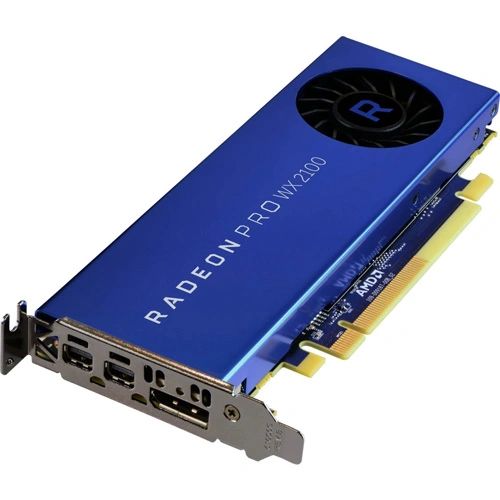

Radeon WX2100 Video Card

$195.00

3 Displays | DisplayPort  | 2G DDR5 | 5K/4K | 3D: Designed for CAD design, engineering, financial and professional industries. Certified for many CAD/CAE applications this powerful video card has the power you need for serious rendering.


Display Capabilities

  • x Mini DisplayPort v1.4
  • x Standard DisplayPort v1.4
  • 3 x HDMI or DVI (with optional Active adapters above)
  • Max DisplayPort 1.4 Resolution: 5120 x 2880 (5k)
  • Max DisplayPort 1.2a Resolution: 3840 x 2160 (4k)
  • Max DisplayPort 1.1 Resolution: 2560 x 1600
  • To obtain the max resolutions above, monitors must also support that resolution.
  • Support for up to 3 x 4k displays @60Hz
  • Support for a single, 5K displays @60hz.
  • Up to 3 x 4k HDMI outputs @30Hz with optional active adapters above.
  • Up to 3 x 4k HDMI outputs @60Hz with optional active adapters above.
  • Native support for 3 x 4k outputs when DisplayPort v1.2 or higher displays and cables are used.
  • For all 4k/5k, high quality DisplayPort cables v1.2 or higher are required.
  • Monitors or TV's used must support the desired resolutions as well.
  • No VGA support for this card.


Specifications

  • PCI Express 3.0 x16 lane architecture
  • 2G DDR5 graphics memory (for more memory see the WX3100 card)
  • 5k support  (2 @ 60Hz single cable, 1 @60Hz single cable)
  • DisplayPort version: 1.4 / HBR3 / HDR Ready
  • Low power consumption / 50w
  • DirectX 12, Open GL 4.5, OpenCL 2.0, Vulcan API
  • High performance 3D graphics engine
  • Catalyst Control Center software
  • Eyefinity support

System Requirements

  • Available PCIe x16 slot (3.0 for best performance)
  • Microsoft Windows 7, Windows 10 or Linux (32-bit or 64-bit)
  • 8G of system memory
  • 500w power supply
  • CD-ROM drive (or Internet access) for software installation


Monitor Requirements (What you will need)

  • DVI Monitors: 3 x DP to DVI active adapters (required) + 3 x DVI cables. You can use the DVI cables that came with your monitors, or add them to your order above.
  • DisplayPort Monitors: DP to DP cables. Add to your order above if needed.
  • HDMI Monitors: DP to HDMI active adapters (required) + 3 x HDMI cables. You can use your own HDMI cables, or add them to your order above.

If you have any questions, please feel free to give us a call now at 239.254.9206.

Warranty

  • Three year limited product repair/replacement warranty direct from AMD
