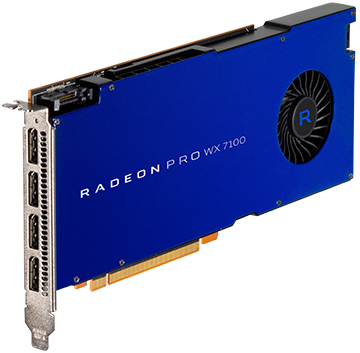

Radeon WX7100 Video Card


4 Displays | DisplayPort, DVI or HDMI | 8G DDR5 | 5K/4K | 3D: Designed for CAD design, engineering, financial and professional industries. Certified for many CAD/CAE applications this powerful video card has the power you need for serious rendering.

Display Capabilities

  • 4 x DisplayPort v1.4
  •  Up to 4 x DVI or HDMI (with optional adapters above)
  • Max DisplayPort 1.4 Resolution: 5120 x 2880 (5k) @ 60Hz
  • Max DisplayPort 1.2a Resolution: 3840 x 2160 (4k)
  • Max DisplayPort 1.1 Resolution: 2560 x 1600
  • 2 x DP (M) to DVI (F) adapters (passive) included.
  • Up to 4 x DVI monitors with optional 4 x DP to DVI  active adapters (above).
  • Drive a single, 5K display @60Hz
  • Up to 4x 4K displays (DP v1.2 or higher). @60Hz
  • Up to 4 x 4k HDMI outputs @30Hz with optional active adapters above.
  • Up to 3 x 4k HDMI outputs @60Hz with optional active adapters above.
  • Up to 4 x 4k DisplayPort outputs @60Hz
  • For all 4k/5k, high quality DisplayPort cables v1.2 or higher are required.
  • Monitors or TV's used must support the desired resolutions as well.
  • No VGA support for this card.


  • PCI Express 3.0 x16 lane architecture
  • 8G DDR5 graphics memory
  • 5k support (2 @ 60Hz single cable, 1 @60Hz single cable)
  • 2304 Stream Processors
  • DisplayPort version: 1.4 / HDR Ready
  • Power consumption / 150w
  • DirectX 12, Open GL 4.5, OpenCL 2.0, Vulcan 1.0, Polaris 10
  • High performance 3D graphics engine
  • Catalyst Control Center software
  • Eyefinity support

System Requirements

  • Available PCIe x16 v3.0
  • Microsoft Windows 7, Windows 10 or Linux (32-bit or 64-bit)
  • 16G of system memory
  • 600w power supply
  • CD-ROM drive (or Internet access) for software installation

Monitor Requirements (What you will need)

  • DVI Monitors: 4 x DP to DVI active adapters (required) + 4 x DVI cables. You can use the DVI cables that came with your monitors, or add them to your order above.
  • DisplayPort Monitors: 4 x DP to DP cables. Add to your order above if needed.
  • HDMI Monitors (up to 4k): 4 x DP to HDMI active adapters (required) + 4 x HDMI cables. You can use your own HDMI cables, or add them to your order above.

If you have any questions, please feel free to give us a call now at 239.254.9206.


  • Three year limited product repair/replacement warranty direct from AMD
